homemade greenhouse


Goto page 1, 2, 3  Next
Most Recent Posts Skimmia seed wanted
Last post: Brendankearns
funny
Last post: Margo
At last! A garden joke. (except maybe it's not a joke!)
Last post: Ado 2
2016 Vegetable quizz.
Last post: Greengage

Visit TheGardenShop.ie
Author Message
spider
Rank attained: Hawthorn Tree
Rank attained: Hawthorn Tree


Joined: 06 Feb 2008
Posts: 63
Location: west ireland

PostPosted: Wed Jun 04, 2008 9:09 pm    Post subject: homemade greenhouse Reply with quote

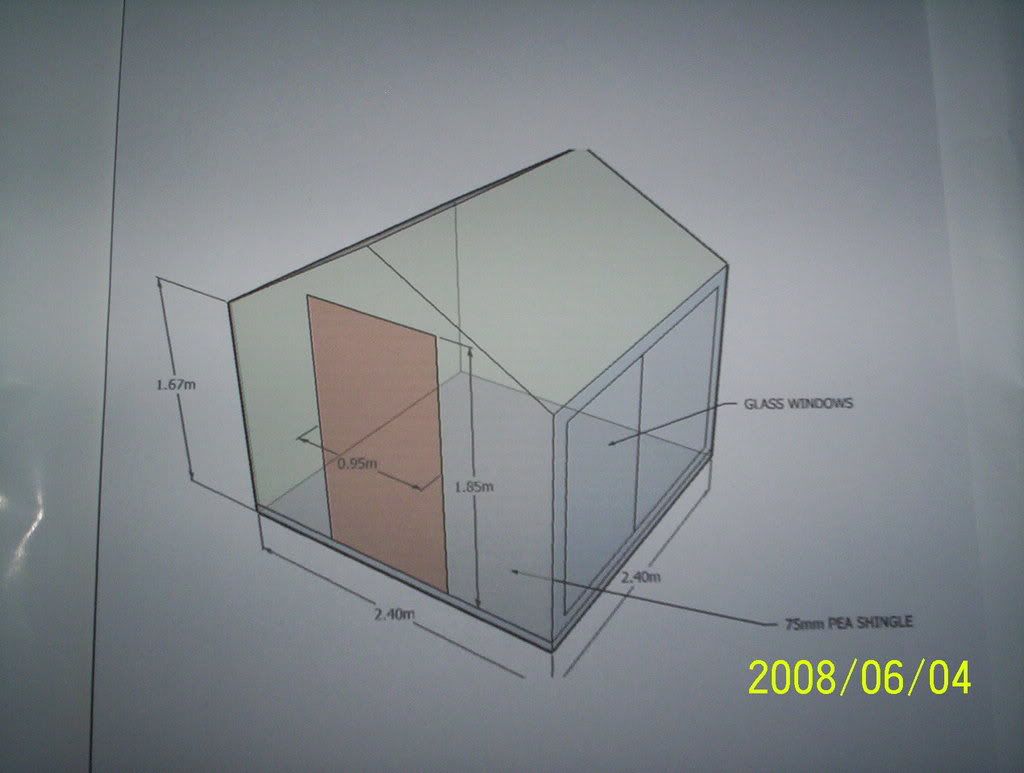

Was thinking of building a green house .2.4m square .using ply for floor and .75mm upstand all round perimiter ,and fill floor with pea shingle. Have 2no windows for south wall and can aquire enough perspex for rest of walls and roof, so really all materials are free except the frame which i might make out of wood.
MY question is
1 -is size good enough 2.4m sq and 1.5m walls 30 deg roof pitch
2- pea shingle laid .75mm thick on floor ,acts as heat source at night iam told
3-perspex is old gone sort of yellow , will it be all right to use
dont want to spend much money on greenhouse just yet . really only want it for raising seedlings ,and maybe more in winter months if possible/
Take a look at pict ,know its big but cant see detail if smaller
thank you
Back to top
View user's profile Send private message
Sb
Rank attained: Silver Birch Tree
Rank attained: Silver Birch Tree


Joined: 09 Jun 2006
Posts: 184
Location: east coast

PostPosted: Thu Jun 05, 2008 10:13 am    Post subject: Re: homemade greenhouse Reply with quote

spider wrote:

1 -is size good enough 2.4m sq and 1.5m walls 30 deg roof pitch


Well the smaller glasshouse available to buy are 2 metres by 2 metres so you are going bigger. Maybe if some one had one of these small ones they could tell you how they got on. If you put a 3ft wide path down the centre that leaves 2 to 2.5 ft either side for benches or beds.




spider wrote:

2- pea shingle laid .75mm thick on floor ,acts as heat source at night iam told


Seen a few people do that, sounds good. They are supposed to act like mini radiators.

spider wrote:

3-perspex is old gone sort of yellow , will it be all right to use


Just means less light in winter but you may not need shading in the summer as some glasshouse owners have to install.

I think it is noble what you are trying to do reusing the perspex and all that. Where are you building it, near the house, down the garden, or on an alotment.
Back to top
View user's profile Send private message
verge
Rank: Chief Moderator


Joined: 04 Jun 2006
Posts: 598
Location: Ireland

PostPosted: Thu Jun 05, 2008 10:22 am    Post subject: Reply with quote

Have a look at this thread http://www.gardenplansireland.com/forum/viewtopic.php?t=1260
Member AJ on it has a 6ft x 6ft glasshose he uses pictured. I suggest you make a new post on that thread linking to this topic and you may get a few replies as well.
Back to top
View user's profile Send private message
cooler
Rank attained: Sessile Oak Tree
Rank attained: Sessile Oak Tree


Joined: 15 Jun 2006
Posts: 292

PostPosted: Fri Jun 06, 2008 10:08 am    Post subject: Reply with quote

Make the base concrete if you can. Avoid wood in contact with soil. Lay blocks or else frame and pour a base.
Back to top
View user's profile Send private message
spider
Rank attained: Hawthorn Tree
Rank attained: Hawthorn Tree


Joined: 06 Feb 2008
Posts: 63
Location: west ireland

PostPosted: Fri Jun 06, 2008 7:02 pm    Post subject: Reply with quote

thanks people for your advice. just wasnt sure , know concrete base would be right, but not 100% sure where i am going to site it .so perfer option of moving it .
Back to top
View user's profile Send private message
spider
Rank attained: Hawthorn Tree
Rank attained: Hawthorn Tree


Joined: 06 Feb 2008
Posts: 63
Location: west ireland

PostPosted: Sun Aug 03, 2008 5:09 pm    Post subject: nearly finished Reply with quote

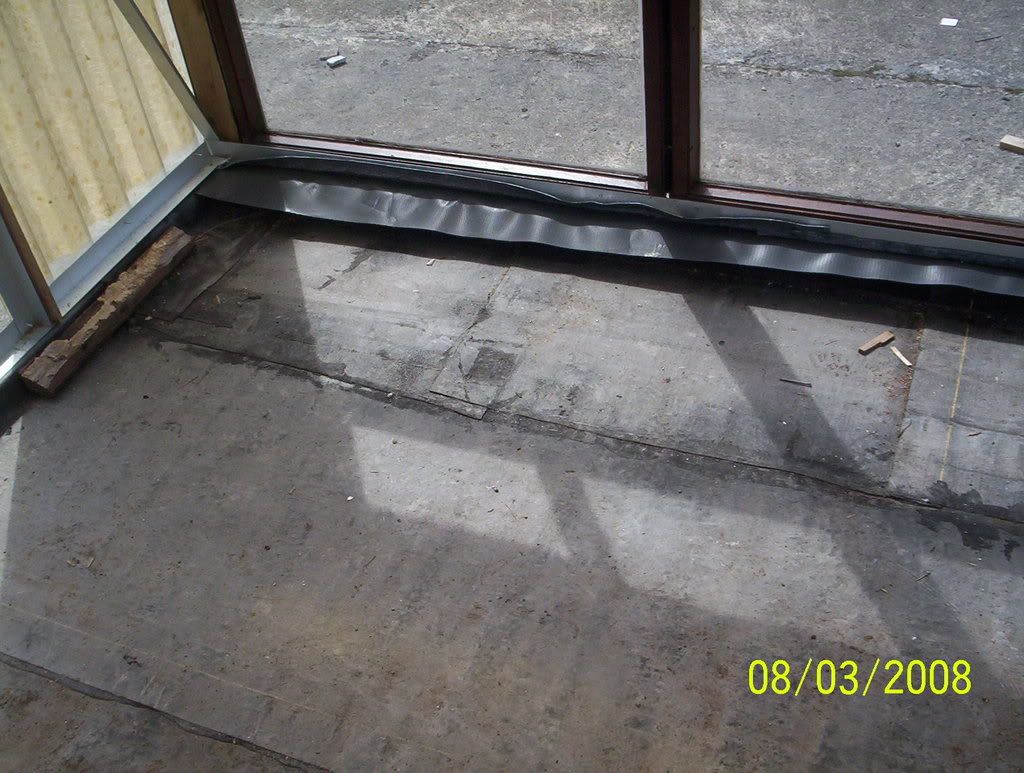

well took a while but still at it , my homemade greenhouse .Question for the board ,as i already said ,using old perspex , but after i put the roof on ,there is no sunshine coming in ,plenty of light .
Now what sort of ! light ! is important for a greenhouse , do i have to have direct sun of just plenty of daylight .
have a look a photos please

Back to top
View user's profile Send private message
goreygreenhouse
Rank attained: Hazel Tree
Rank attained: Hazel Tree


Joined: 19 Jul 2006
Posts: 14
Location: Location : Location:

PostPosted: Sat Feb 07, 2009 2:40 pm    Post subject: a recent job Reply with quote

heres one my dad and i built recently

we built the back wall, 9" cavity blocks, poured concrete foundation along front, 2 high 4" block wall to front and on e to the side where the door is, 2x4 treated timber frame and 10mm twin wall polycarbobnate as the glazing material

pretty happy, used up a lot of left overs from the business, only had to purchase some PC for the roof. alomost finished when these were taken. I know he cant wait to get stuck in this year and plant all sorts of everything!!



















Back to top
View user's profile Send private message
Nanonano
Rank attained: Hazel Tree
Rank attained: Hazel Tree


Joined: 06 Feb 2009
Posts: 8
Location: Kells, County Meath

PostPosted: Mon Feb 09, 2009 10:03 am    Post subject: Reply with quote

That's looks great. Well done. If I could only get my husband to do that. Do you get the polycarbonate sheets in the dimensions you used or do you have to cut them to size? Any advise on where to get them?
Back to top
View user's profile Send private message Visit poster's website
goreygreenhouse
Rank attained: Hazel Tree
Rank attained: Hazel Tree


Joined: 19 Jul 2006
Posts: 14
Location: Location : Location:

PostPosted: Mon Feb 09, 2009 12:21 pm    Post subject: Reply with quote

hi, thanks.

the polycarbonate we get from a company in Dublin, Williaam Cox. It comes in sheets 2100mm wide x 3500mm high, or full sheets (210mm x 7000mm) BIg sheets!!! its twinwall 10mm, clear.

2m x 7m is hard to work with, but depending on cuts, if worked out rightly, this can be the best to get , if you have an area to lay it flat and cut it up.

the overall size of the roof is 2 sheets wide, so 4200mm , and the slope is a full 3500mm, so the frame underneath then can be smaller. this will allow for very little offciuts and wastage. We decided to go witha lean too, as the concerte blocks offer good heat insulation and retention in the summer, the PC is a fantastic insulator, and very strong, even kicking balls against it wont barely scratch it

ill take some more up close dtailed shots soon to show more details of fixing etc.

for example on how good these are for growing,

07-05-08


2 months later and these Ildi tomatoes are freaken out!!!

13-07-08
Back to top
View user's profile Send private message
Nanonano
Rank attained: Hazel Tree
Rank attained: Hazel Tree


Joined: 06 Feb 2009
Posts: 8
Location: Kells, County Meath

PostPosted: Mon Feb 09, 2009 2:56 pm    Post subject: Reply with quote

Keep those pics coming! I don't believe the tomatoes.. .
The reason I'm so interested is that I want a lean to as well but the size is not standard. I would like to see the fixings cause I can't see how you attach the polycarbonate to the timber.

Just thinking if I could do it myself ( with a diy book and your pics) and get the hubby to help me.. Confused Just thinking out loud now.

But your pictures are very encouraging to see how it grows.
Thanks,
Nathalie
Back to top
View user's profile Send private message Visit poster's website
nemo
Rank attained: Hawthorn Tree
Rank attained: Hawthorn Tree


Joined: 18 Jan 2009
Posts: 94
Location: kildangan kildare

PostPosted: Mon Feb 16, 2009 8:25 pm    Post subject: beautiful greenhouse Reply with quote

would TeX screws fix the PC sheets to the frame.did the suppliers of the sheeting deliver it .roughly how much is the sheeting.is the sheeting guaranteed against getting cloudy UV resistant.
thanks for putting up the photos
regards
nemo
Back to top
View user's profile Send private message
goreygreenhouse
Rank attained: Hazel Tree
Rank attained: Hazel Tree


Joined: 19 Jul 2006
Posts: 14
Location: Location : Location:

PostPosted: Fri Feb 20, 2009 1:34 pm    Post subject: Re: beautiful greenhouse Reply with quote

nemo wrote:
would TeX screws fix the PC sheets to the frame.did the suppliers of the sheeting deliver it .roughly how much is the sheeting.is the sheeting guaranteed against getting cloudy UV resistant.
thanks for putting up the photos
regards
nemo


Hi nemo

yes, the screws i uesd to hold down the Pc are the tex or hex ones, zinc coated with the hex head and a metal and rubber washer on them too. they are good solid screws available in different lengths. The PC is guaranteed against yellowing for 10 yeras, its the sunlite Pc, has a film on the inside coat and helps prevents UV loss, much like the pilkington K glass coating id say. yes they deliver, i had mine collected by a friend in the transport industry. jeez, i always forget the price of the sheeting, you can ring williaam cox and ask anyway. its easily cleaned with water and a soft brush atoo. which i must do one of these days!!! more photos soon

thanks
Back to top
View user's profile Send private message
PennyG
Rank attained: Hawthorn Tree
Rank attained: Hawthorn Tree


Joined: 19 Feb 2009
Posts: 75
Location: Ontario, Canada

PostPosted: Fri Feb 20, 2009 2:10 pm    Post subject: Reply with quote

Looks great and i sure hope that my Ildi do as well as your;s, and i LOVE the little claypot person sitting in the window.....very cute Very Happy Very Happy
_________________
Gardening is Great Therapy~!
Back to top
View user's profile Send private message
Organicgrowingpains
Rank attained: Silver Birch Tree
Rank attained: Silver Birch Tree


Joined: 24 Aug 2008
Posts: 175
Location: Cork

PostPosted: Tue Feb 24, 2009 8:30 pm    Post subject: Reply with quote

I don't have the benefit of a greenhouse but think this idea for greenhouse staging is fantastic! How many times have we seen these discarded and look what can be made from them. Reduce reuse recycle. it is a fairly new blog and if you visit it is nice to leave a comment!
http://vegandflowertime.blogspot.com/2009/02/greenhouse-staging.html Surprised Surprised Surprised Surprised

_________________
Always learning!
http://www.organicgrowingpains.blogspot.com
Back to top
View user's profile Send private message Visit poster's website
michelle M
Rank attained: Rowan Tree
Rank attained: Rowan Tree


Joined: 10 Feb 2009
Posts: 145
Location: Limerick

PostPosted: Wed Mar 04, 2009 4:00 pm    Post subject: Reply with quote

I have just added a lean-to glasshouse to my wish list which is getting longer every time I look at this site, but anyway a few questions Rolling Eyes
1) For a lean to glass house, should it face directly south or is there such a thing as too much heat?

2) goreygreenhouse, what size is yours? It's probably there already, but I've missed it Embarassed
Back to top
View user's profile Send private message
